MK25 Powered 4 wheel Kit for the Octbox Seat Box – W-oct-032-MK25

Description

MK25 Powered Wheel Kit for the Octbox Seat Box (Available from 28th Feb 25)

The MK25 Powered System upgraded the electrics and control system to make the barrow much more robust by increasing the wattage and amp capacity as well as giving the barrow a reverse capability

The main attributes that place the barrow in a different league are

1.     Variable Chassis to set the load area and balance to match the load to be carried and length set to the van capacity

2.     Adaptive Suspension allows the left and right wheels to work up and down to give more stability on sloping ground as well the capability to move backwards and forwards under pressure to act as a buffer when the wheels hit obstacles such as rocks, ruts and potholes to help protect the chassis and reduce vibration.

3.     Wheels fitted with Alloy differentials to make tight turns under power possible by allowing the inner wheel to travel at a slower speed.

4.     12V 16AH Lithium Powered Battery.   The battery can be left for months over the winter without charging without any damage being caused.  Fitted with a quick release connector.

5.     High ground clearance, essential in wet conditions when standing water needs to be crossed or during the summer when anglers may have to get through high undergrowth.

6.     High Torque very robust 200watt motor that generate 19 Newtons of force.   This is 50 percent more powerful than our 2018 model.   Since 2022 since it’s introduction we have not had a single motor fail.

7.     Quick release Powered wheels and collapsable and modular chassis allows the system to be packed into a very compact space when its necessary to pack into a car.

8.     New upgraded electronics and control system that gives the barrow a reverse capability and the capacity to manage the demands from motors up to 400 watt.  The system will not cut out when moving across difficult ground even.   A 35 amp car fuze gives additional protection.

9.     3 year warranty.   In the event the system has a fault in the first 12 months Octbox will either send out the replacement part or arrange for the barrow to be collected, repaired and returned free of charge, usually within 72 hours.  After 12 months for the remainder of the warranty Octbox charge a maximum fee of  £50 fee that will cover collection repair and return of the barrow.   The battery warranty is 3 years.

Options

1.     Complete System (see details below)
2.     System Less Rear Wheel Kit (supplied with RH Handle).  For anglers that already have the Octbox Rear wheel kit
3.     System Less Rear Wheel kit (suppled with RH Handle) and Lithium Battery. For anglers with a Rear Wheel kit and Lithium Battery

Complete System
Comprises of 2 modules that slot into sockets built into the front and rear of the Octbox Seatbox. The system has differentials built into the wheels to assist turning and is powered by a powerful 180watt motor with a low ratio worm gearbox.
It takes just over a minute to to covert the octbox to a powered large capacity wheel barrow.

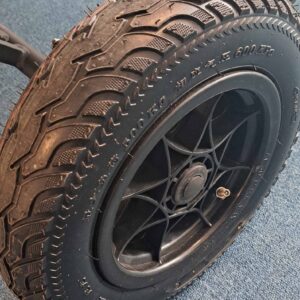

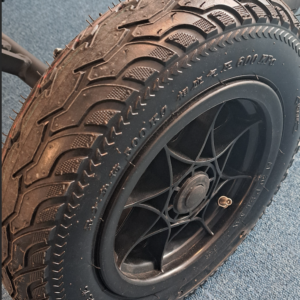

The large 41cm dia wheels are puncture proof and move the barrow forward 4ft (120cm) with each rotation.  shock absorbers fitted to the front chassis reduce vibration and reduce the risk of damage when moving over very difficult ground.
The 12V Lithium Battery that powers the barrow has a quick fit T bar connector and is supplied with battery charger.

The bespoke motor and gearbox have been designed specifically with the anglers needs as apposed to other systems that use Golf trolley parts.  The wheels are fitted with differentials to make steering easier and it is also possible to adjust the tracking on the MK22 system.   High ground clearance and 15cm adjustable shock absorbers allow the barrow to move smoothly over rough difficult ground.
